Black Centre-Console Screw Cover

REPLACES OEM51167906699

ABS · PETG1 FILECC-BYInterior

PART RECORDREF 1545

PART: Black Centre-Console Screw Cover
OEM: 51167906699
FITS: Z4 E85 / E86

Loading 3D viewer...

PART ID · BIMMER-3D / 1545QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

4 PLATES

PLATE 01 / 04No caption recorded

Build sheet

MAN-1545

[01]BMW_Center_Console_Screw_Cover_v4.stlBMW_Center_Console_Screw_Cover_v4.stl.STL
[02]Bounding box33.999 × 31.000 × 8.500 mm
[03]Volume1,521.038 mm³

Field notes

BY JAMES TANNER (IAMORION)

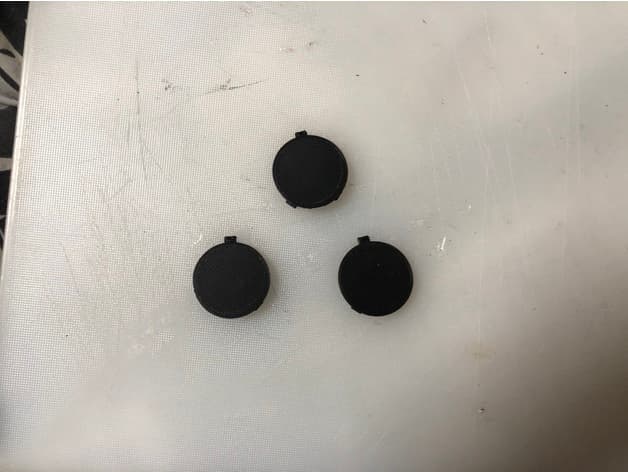

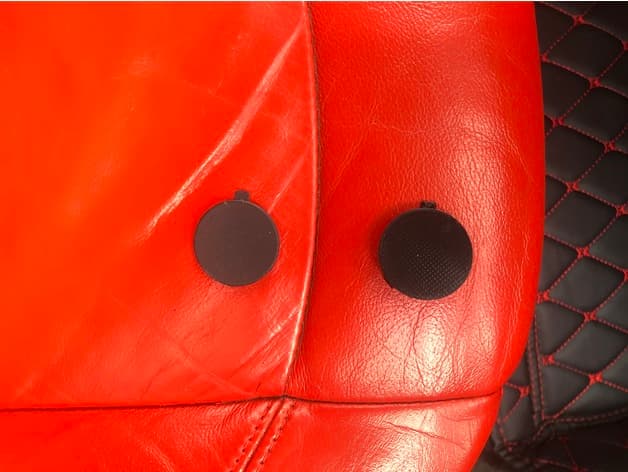

Replacement black screw cover for the centre console, shown installed and as loose physical prints. RealOEM and BMWFans identify the compatible separately serviced black plug as 51167906699, produced from April 2005 and used on E85 Roadster and E86 Coupe interiors. Confirm the black trim specification and opening shape before fitting.

View original source ↗
