Ashtray Storage insert

ABS · PETGMULTI-PART2 FILESCC-BY-NCInterior
PART RECORDREF 1236
PART
Ashtray Storage insert
OEM
FITS
3 Series E46
BIMMER-3D · PART RECORDREV 2026

Loading 3D viewer...

PART ID · BIMMER-3D / 1236QTY 2 · STLHANDLE · NO SUPPORTS
Field photographs
3 PLATES

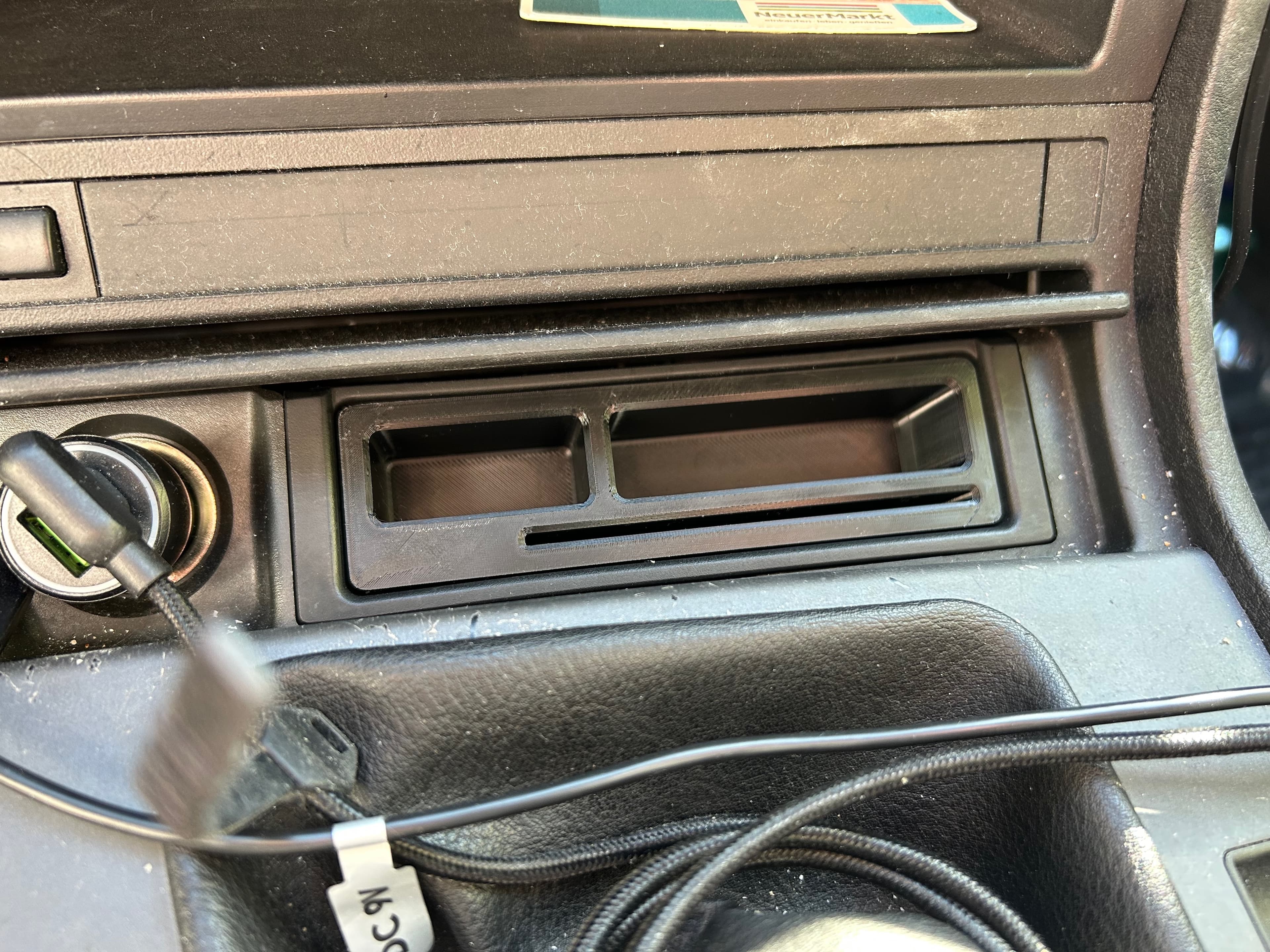

Plate 1 of 3
PLATE 01 / 03No caption recorded
Build sheet
MAN-1236
  • [01]einsatz-e46-aschenbecher-v3.step.STL
  • [02]einsatz.stl.STL
Field notes
BY EXEN904

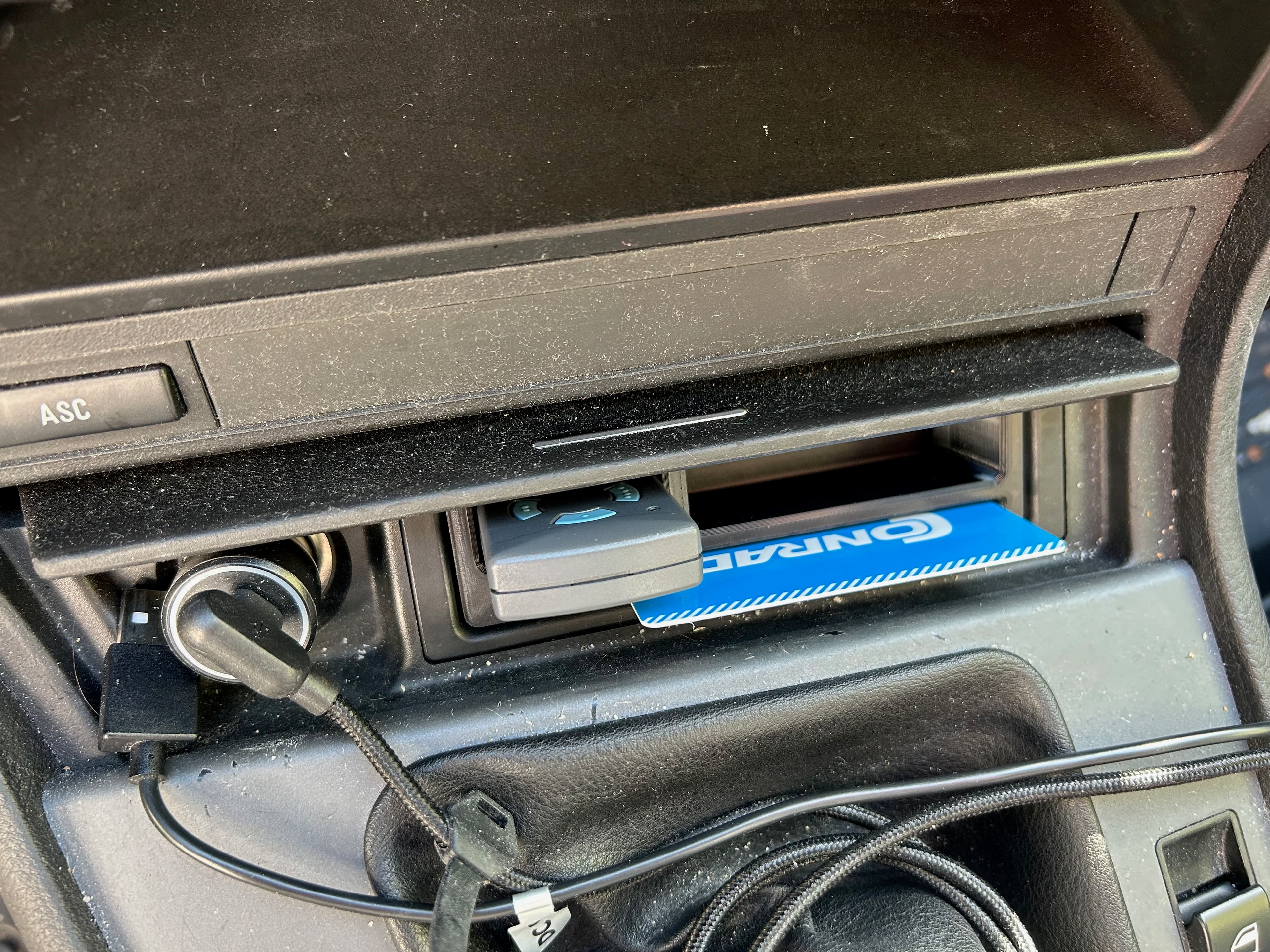

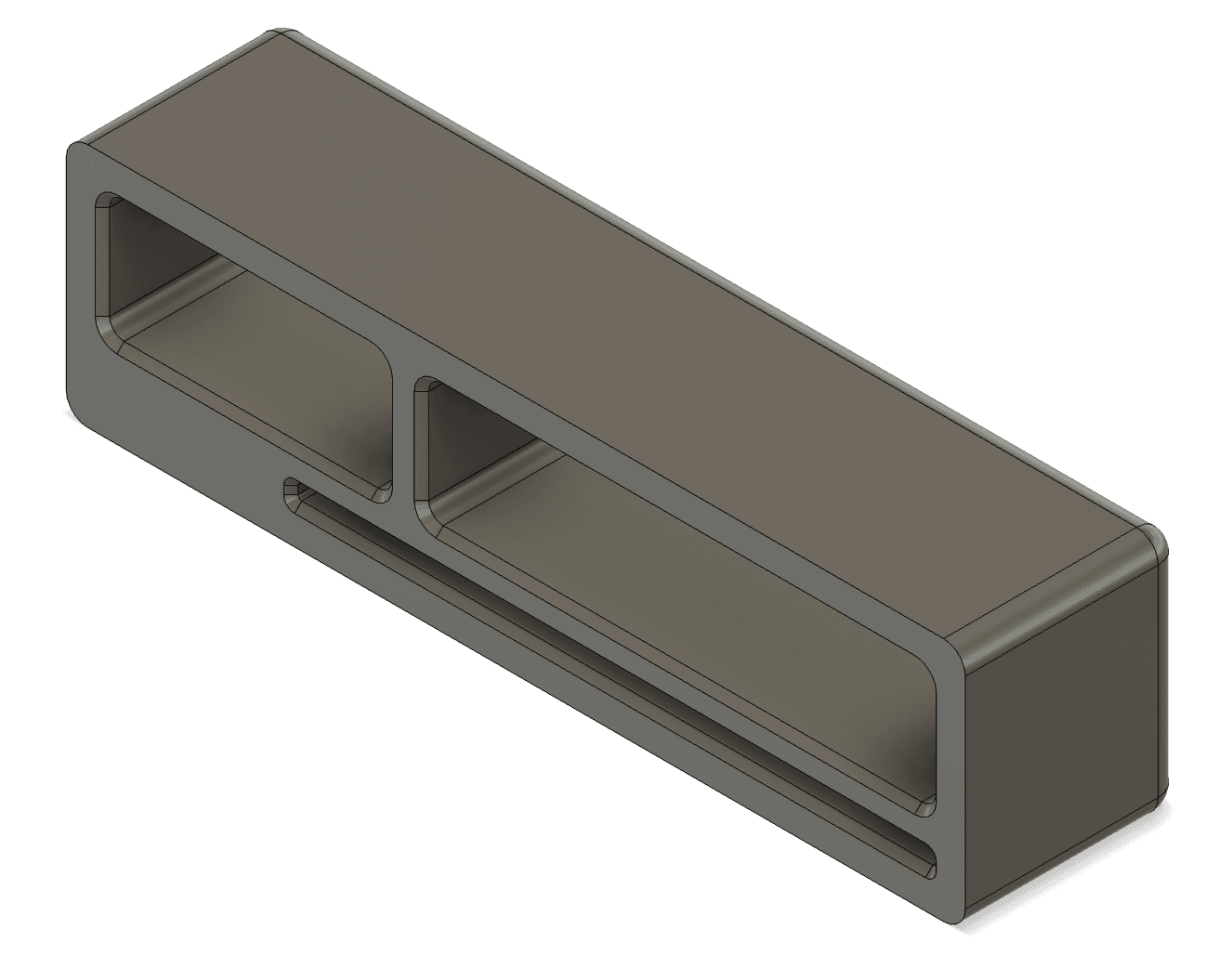

Inserts into the stock E46 ashtray, should be friction fit. I included all of my files, with the following features: .stl with the holder cutouts intended for my own use, Hörmann Garage Door Opener, a ISO/IEC 7810 ID1 cutout and a generic one to use the remaining space .step without cutouts for your own modifications .f3d so you can look at my bad modelling skills and also make your own modifications I would recommend to print this in ABS, PETG may be fine but PLA will 100% shrink if your car heats up. Use cabin-heat-resistant material, dry-fit the part and confirm secure retention and unobstructed operation.
