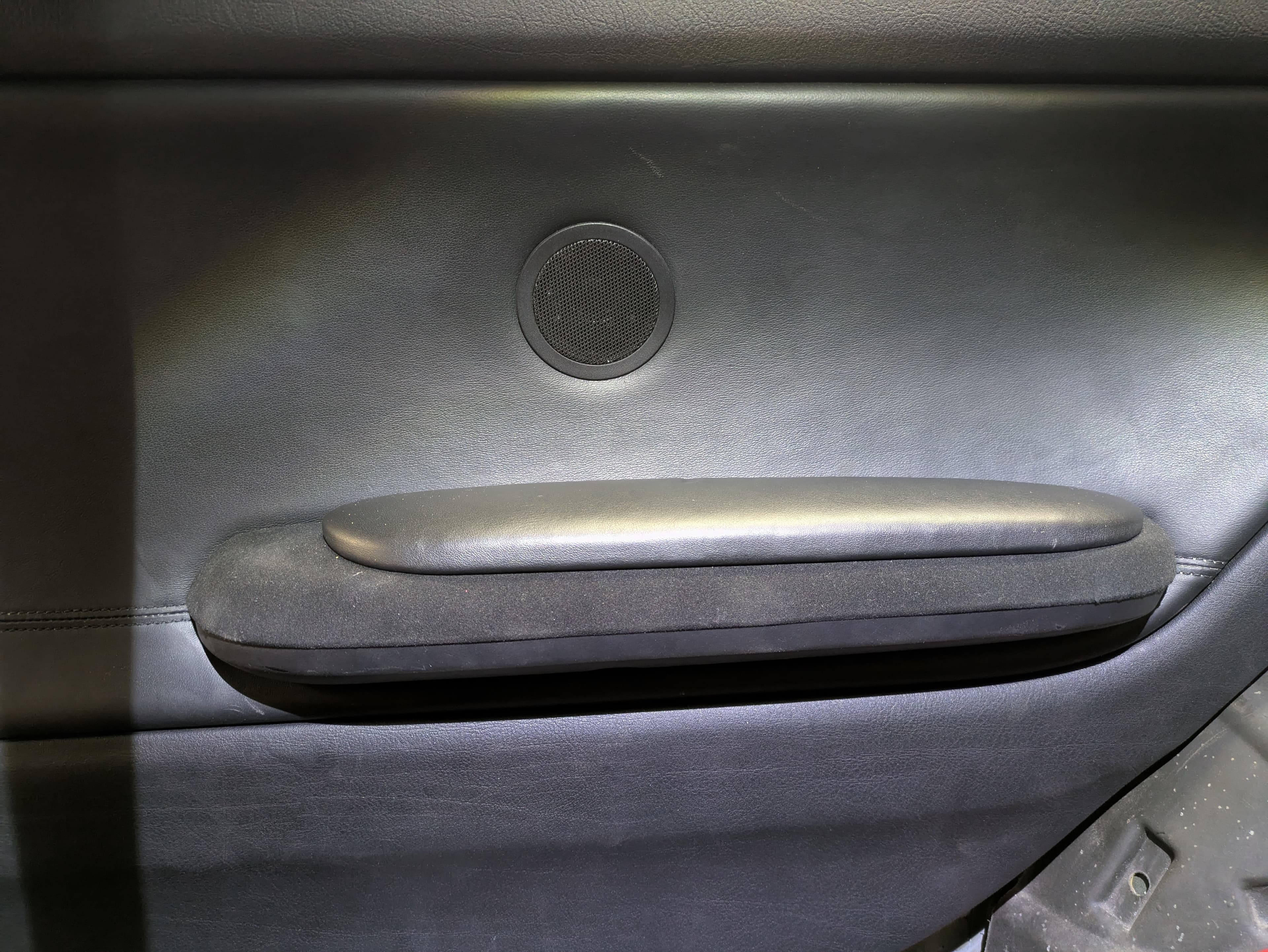

4" speaker adapter for lateral trim panel rear

ABS · PETG1 FILEPublic DomainDoors
PART RECORDREF 1235
PART
4" speaker adapter for lateral trim panel rear
OEM
FITS
3 Series E46
BIMMER-3D · PART RECORDREV 2026

Loading 3D viewer...

PART ID · BIMMER-3D / 1235QTY 1 · STLHANDLE · NO SUPPORTS
Field photographs
15 PLATES
Plate 1 of 15

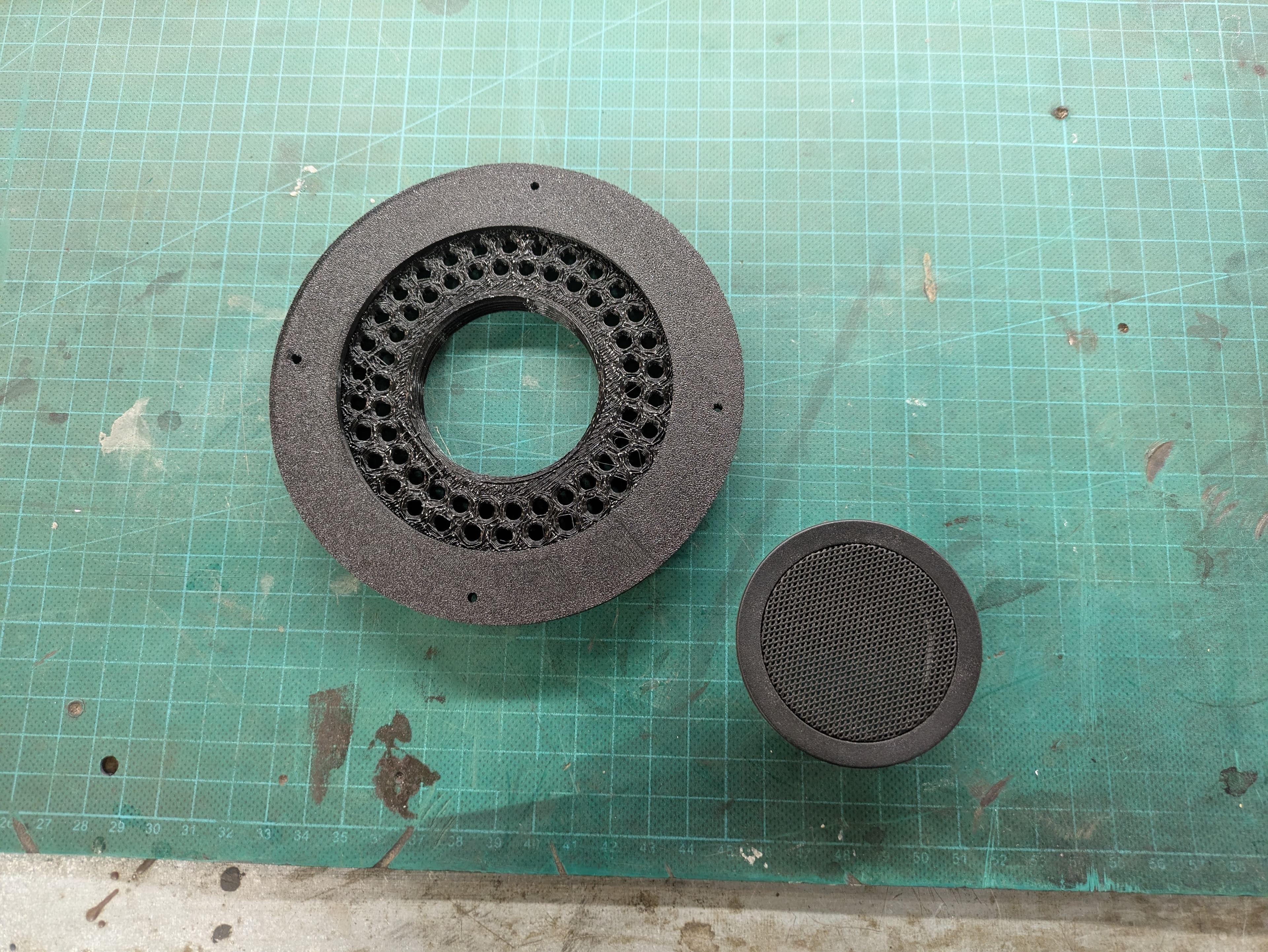

PLATE 01 / 15No caption recorded
Build sheet
MAN-1235
  • [01]e46_speaker_rear.stl.STL
  • [02]Bounding box130.000 × 130.000 × 13.000 mm
  • [03]Volume63,288.294 mm³
Field notes
BY UNDIK

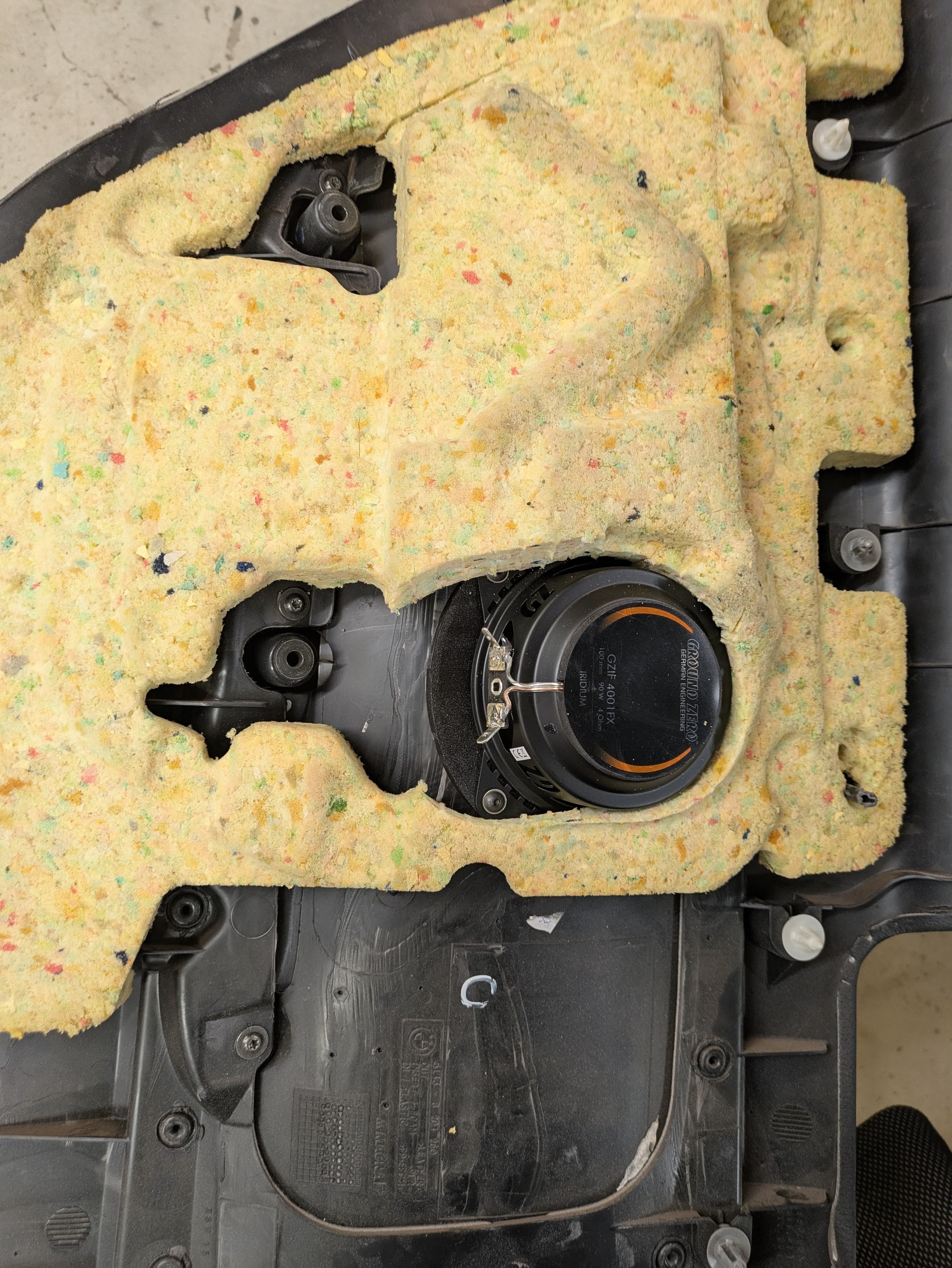

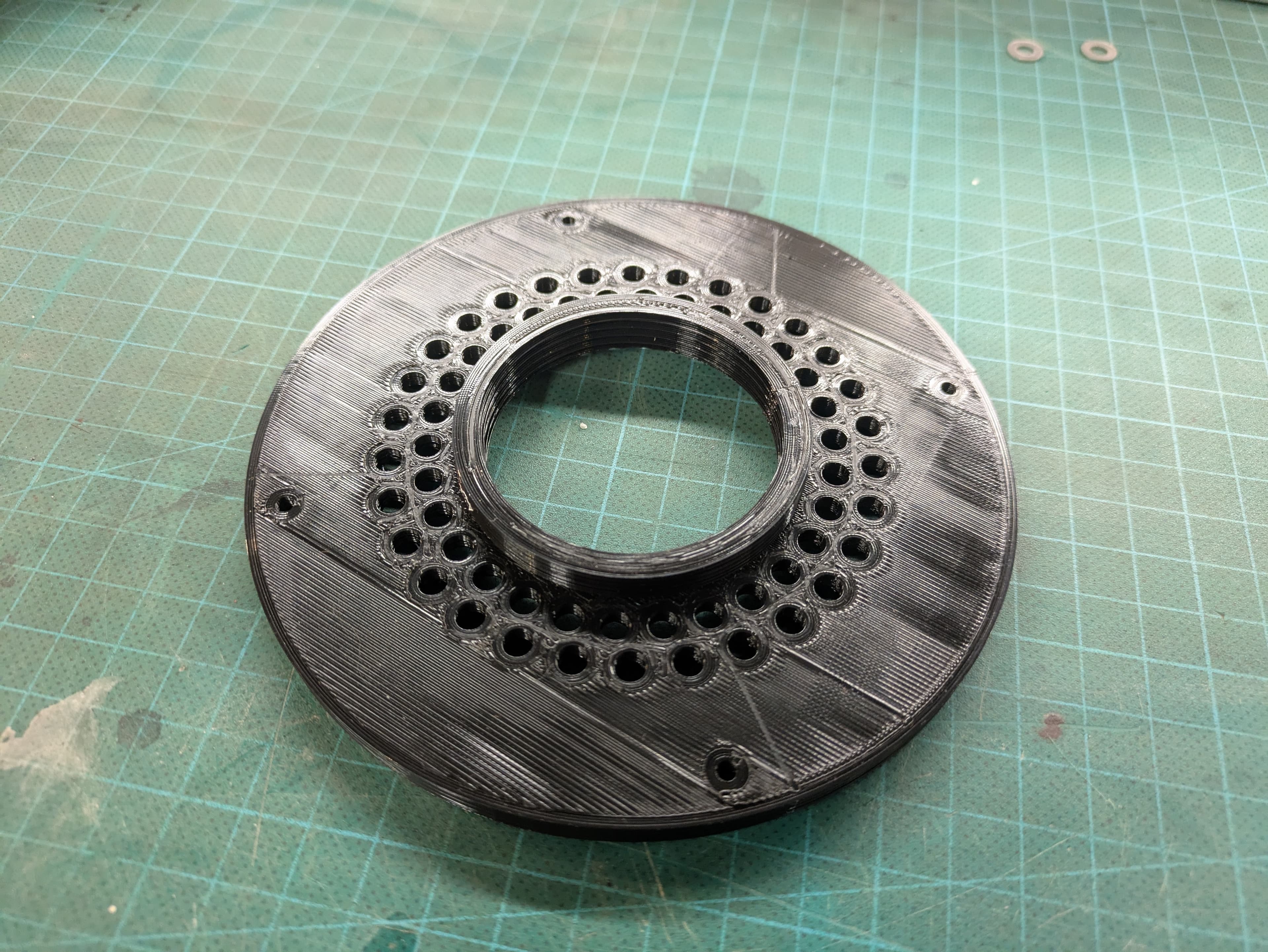

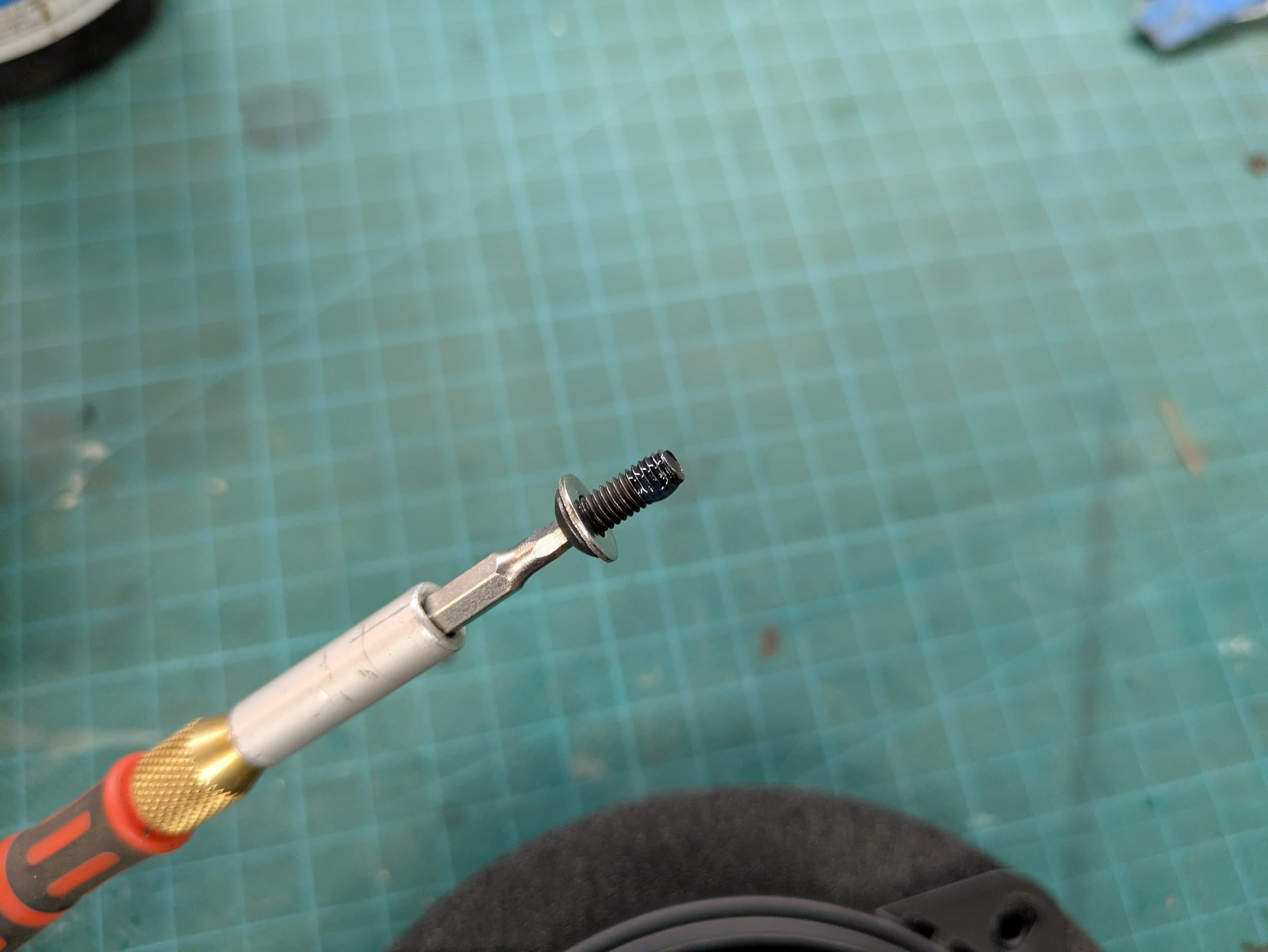

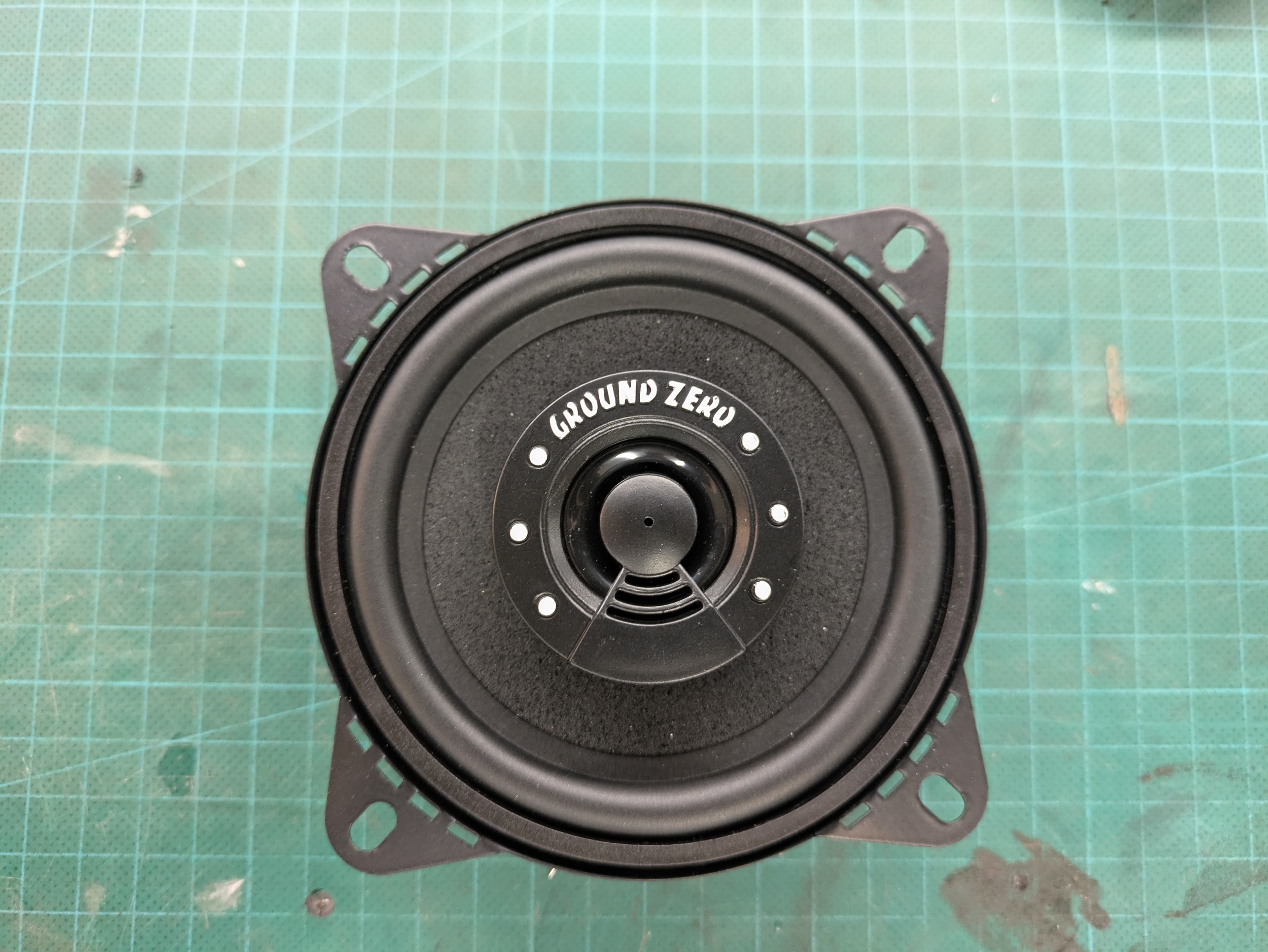

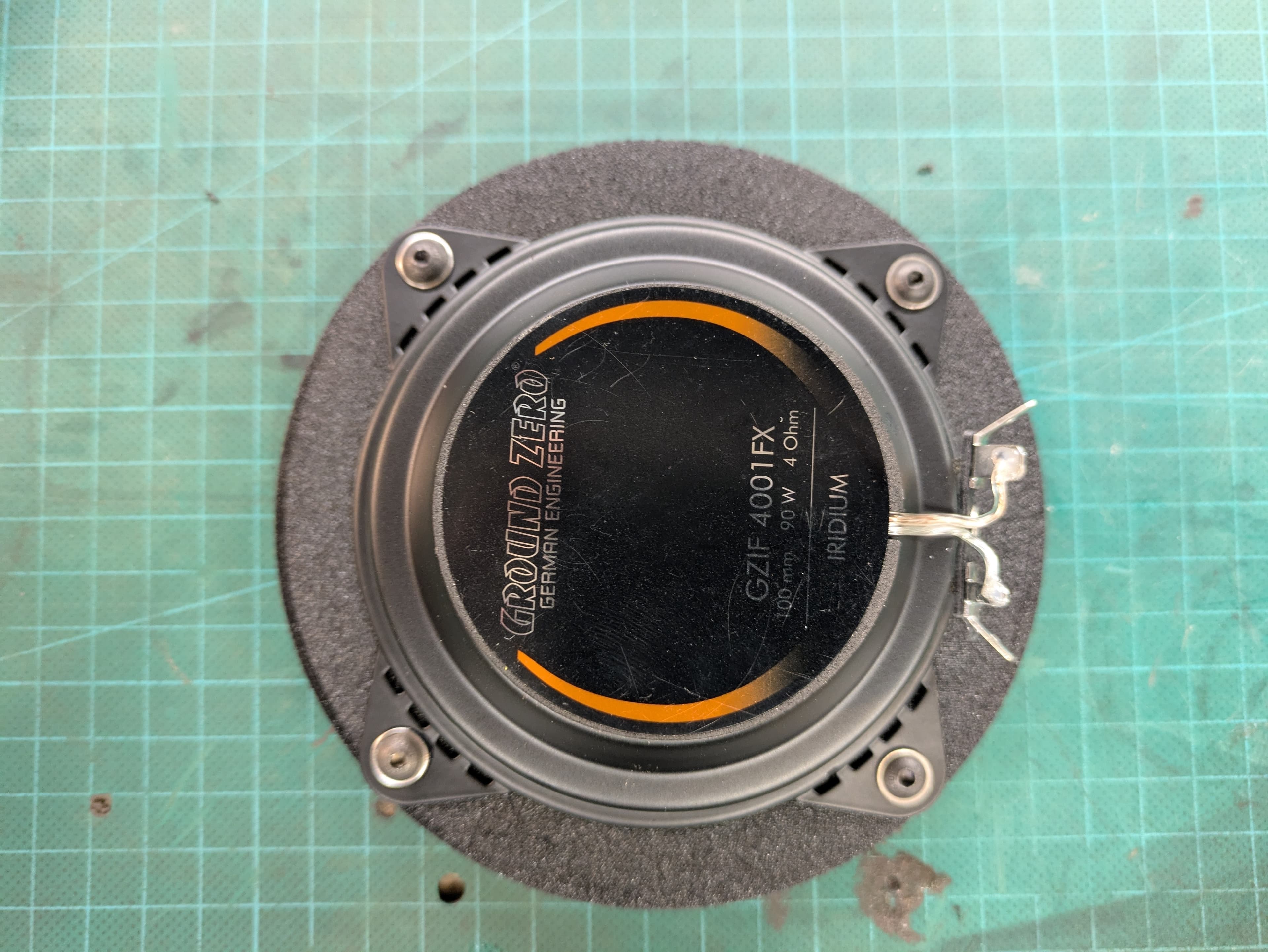

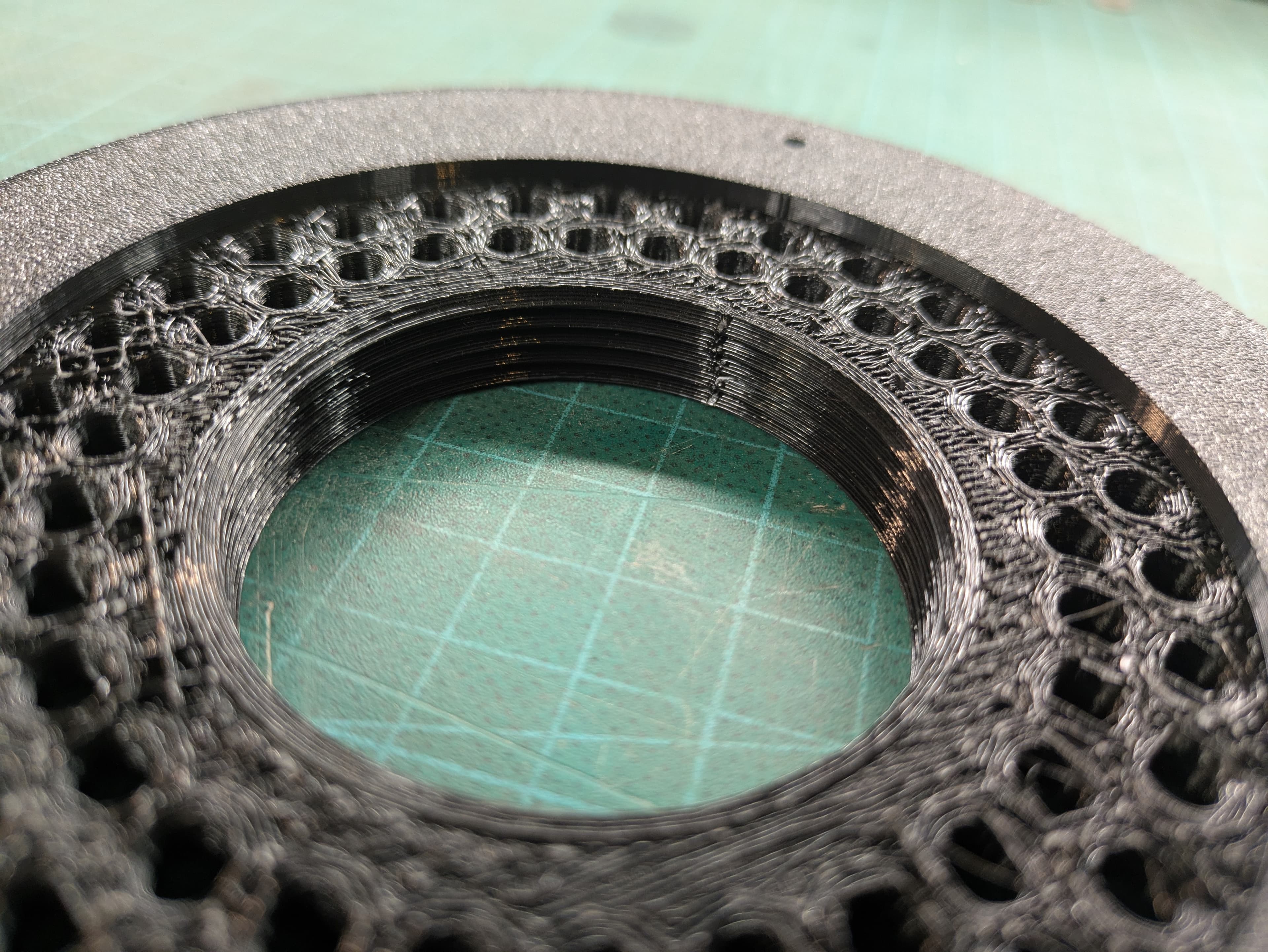

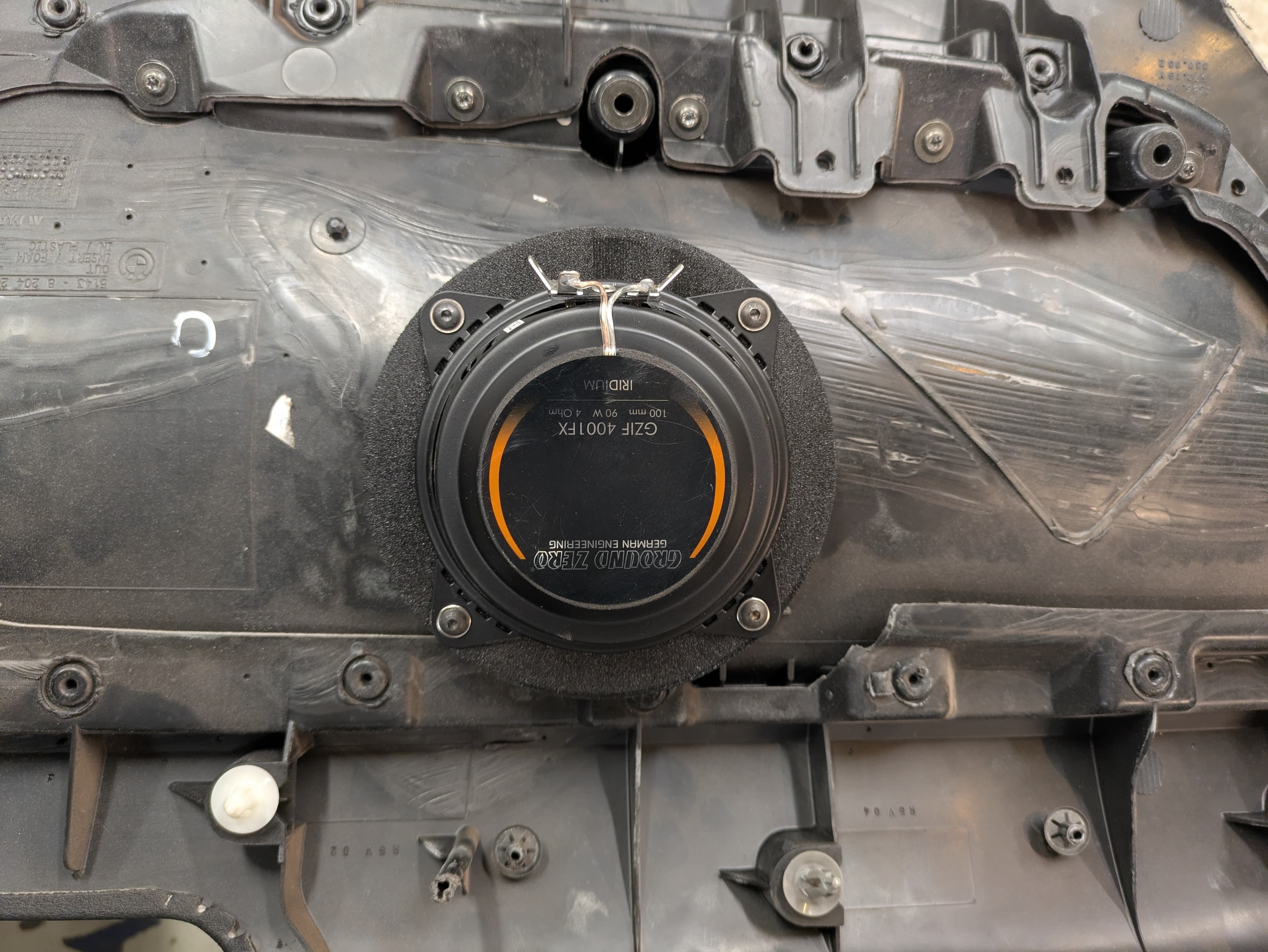

E46 4" Speaker Adapter for Coupe/M3 This adapter screws directly into the original speaker pod. The threads are slightly loose, allowing space for Teflon tape. I applied Teflon tape to ensure a secure fit and prevent the speaker from vibrating loose over time. The speaker is fastened with M4 screws, with a little dab of loctite on them. Dry-fit before fastening and verify glass, latch, wiring and trim clearance through full operation.
